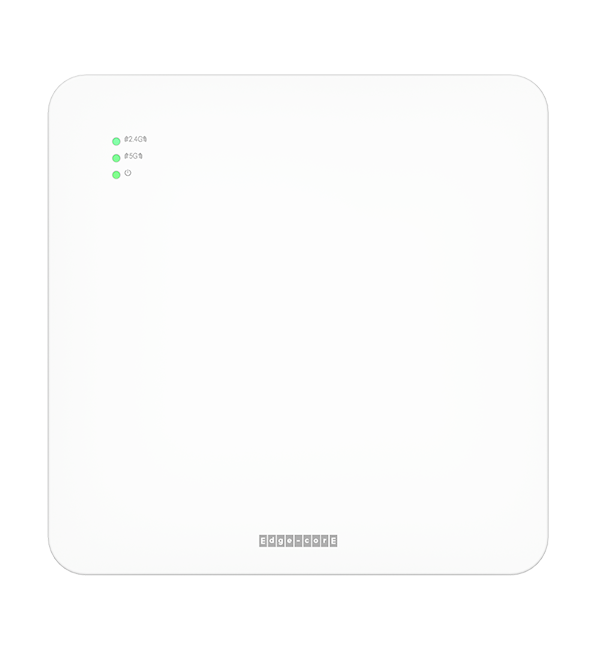

分享到 FacebookEAP101 is an enterprise-grade, concurrent dual-band Wi-Fi 6 indoor access point. EAP101 supports 2×2:2 uplink and downlink MU-MIMO between the AP and multiple clients, with up to 1.7Gbps aggregated data rate. EAP101 is equipped with Bluetooth Low Energy (BLE) radio enabling value-added applications such as iBeacon, presence.
EAP101 can be operated as standalone mode or managed by Edgecore ecCLOUD cloud controller.
規格
Standards:
• 802.11ax (Wi-Fi 6)
• Concurrent dual-band 2.4 GHz & 5 GHz
Radio Chains:
• 2 x2
Spatial Streams:
• 2; MU-MIMO support
Aggregate Conducted Transmit Power:
• 2.4 GHz: Up to 26 dBm
• 5 GHz: Up to 26 dBm
Channelization:
• 2.4 GHz: 20 / 40 MHz
• 5 GHz: 20 / 40 / 80Mhz
Frequency Range:
• 2.400 –2.483 GHz
• 5.150 –5.850 GHz
Operating Channels:
• 2.4 GHz: 1-11 (US), 1-13 (Europe), 1-13 (Japan)
• 5 GHz : 36-165 (US), 36-140 (Europe), 36-144 (Japan)
ESSIDs:
• Up to 16 per radio (32 total)
